A 12-Lead EKG on Every Unit. Not Just the Medic.
SmartHeart® lets any responder capture a hospital-grade, FDA-cleared 12-lead EKG in about 30 seconds — read on scene by trained ALS-level personnel and sent to your medical director, medical control, or the receiving ED before the patient moves.
Built by SHL Telemedicine USA — 25+ years in cardiac telemedicine and over 1 million EKGs delivered. SmartHeart doesn't replace your ALS monitor; it puts a diagnostic 12-lead on the units that reach the patient first.
Not Every Unit Carries a 12-Lead. The Patient Doesn't Wait for the One That Does.
When a patient reports chest pain, pressure, or "just not feeling right," the crew has to decide fast — how urgent, and where to. Too often, the first unit on scene has no diagnostic EKG to decide with.
First Due Is Often BLS
Advanced monitors ride on medic units. The first apparatus to reach the patient is often an engine, an aid car, or a volunteer company — with no 12-lead on board.
Minutes Move the Clock
In an evolving heart attack, time-to-EKG drives time-to-treatment. A 12-lead at first contact — not at ALS arrival — starts the diagnostic clock early.
Cardiology Is Far Away
46% of US counties have no practicing cardiologist. In rural and tiered-response systems, both the diagnostic and the interpretation have to travel to the patient.
From Patient Contact to a Readable 12-Lead in About 30 Seconds
No gel. No shaving. No adhesives. The belt positions the electrodes and the app checks every one before it records — so the system carries the burden, not the operator.

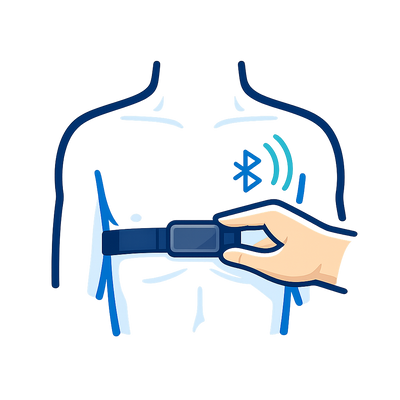

Fit the Belt
Dampen the contact areas with water, strap the belt using guided sizing, and place the three shape-coded limb electrodes.

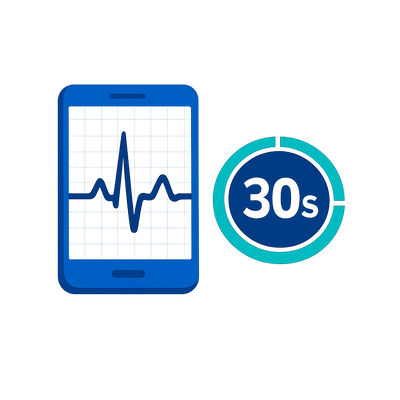

Record in ~30 Seconds
The app verifies Bluetooth, battery, and per-electrode contact, then records. Automated measurements appear immediately, on-device.

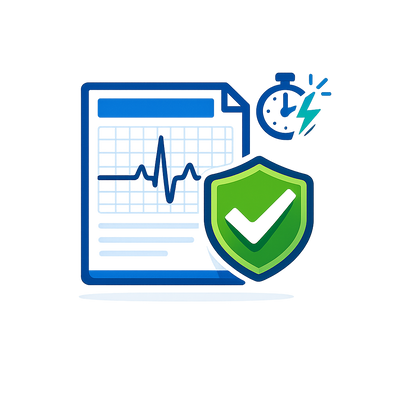

Read & Hand Off
Trained ALS-level personnel read it on scene. The same tracing goes to your medical director, medical control, or the receiving ED.
Symptoms
Chest pain, pressure, "not feeling right"
30-Sec Capture
Any responder, at first contact
Read on Scene
Trained ALS-level personnel
Medical Direction
Director, control, or receiving ED
Decision
Transport & destination — informed
Pocket-Sized. Guided. Built for the Field.
Conventional 12-lead acquisition means managing wires and placing individual electrodes correctly — hardest in living rooms, moving vehicles, and confined spaces. SmartHeart's adaptive belt, integrated electrodes, and real-time contact checks take the wire management out of the call.
Any Responder Operates It
ALS or BLS. No specialized EKG-acquisition certification required, subject to local competency and protocol. Unreadable EKGs are auto-flagged for re-performance — never silently passed.
Records When the Signal Drops
Captures on-device with no link required and transmits the moment one returns — over cellular, Wi-Fi, or low-bandwidth links.
Built for Fleets
Zero patient data on the hardware, automatic updates, cleans with rubbing alcohol. No consumables and no service returns across units, stations, and users.
Training in Hours, Not Days
The FDA submission included a usability study confirming efficacy in untrained hands, and a full training curriculum ships with every deployment.
One Pocket-Sized 12-Lead. Every Place the Kit Doesn't Have One.
From first-due engines to community paramedicine and remote rescue, SmartHeart puts objective cardiac data wherever your people reach the patient first.
First-Due Engines & BLS Units
Equip engines, squads, and BLS rigs so the tracing reaches medical control or the receiving ED before the patient moves — and the incoming ALS crew arrives already informed.
Aid Cars & Volunteer Companies
Put a diagnostic 12-lead on every apparatus — not just the medic truck — for a fraction of the cost of a full monitor, with no consumables to stock.
MIH & Community Paramedicine
Objective cardiac data inside approved home and community encounters, routed for qualified clinical review and action instead of a default transport.
SAR & Remote Response
Capture while the rescue continues. Send to incoming ALS, medical direction, or an authorized receiving ED under a pre-arranged protocol — even over a weak link.
ALS Agencies
A lightweight, guided second pathway for fast 12-lead acquisition, transmission, and review — easier in homes, moving vehicles, and confined treatment areas.
Wildland, Incident & Event Medical
For wildfire camps, contracted incident-medical providers, and remote public-safety operations where a full resuscitation platform can't go everywhere.
The Diagnostic Piece Most First-Response Units Are Missing
SmartHeart is not a monitor or AED replacement. It puts true 12-lead capability on the units that reach the patient first, and complements the equipment your medic units already carry.
Full 12-Lead Capture
A clean, diagnostic tracing at first contact — on any unit, by any trained responder.
510(k) Cleared, Class II
K113514. Usability study confirmed 12-lead efficacy in untrained hands.
EKGs Delivered
By SHL Telemedicine USA, whose 24/7 centers handle ~3 million medical interactions a year.
What SmartHeart® does
- Fast, guided 12-lead acquisition on any unit
- Transmits to medical control, incoming ALS, or the receiving ED
- Documented, timestamped, physician-signed record
- Baseline and periodic readings for your own crews
What stays with your monitor
- Defibrillation and pacing
- Continuous monitoring
- Resuscitation
- For cardiac arrest: activate EMS, start CPR, use an AED first
Your Medical Director Reads Your Agency's Own Tracings
Deployed under your EMS medical director's standing order, with role-based portal access so incoming EKGs can be reviewed directly as they arrive.
A Defensible Record

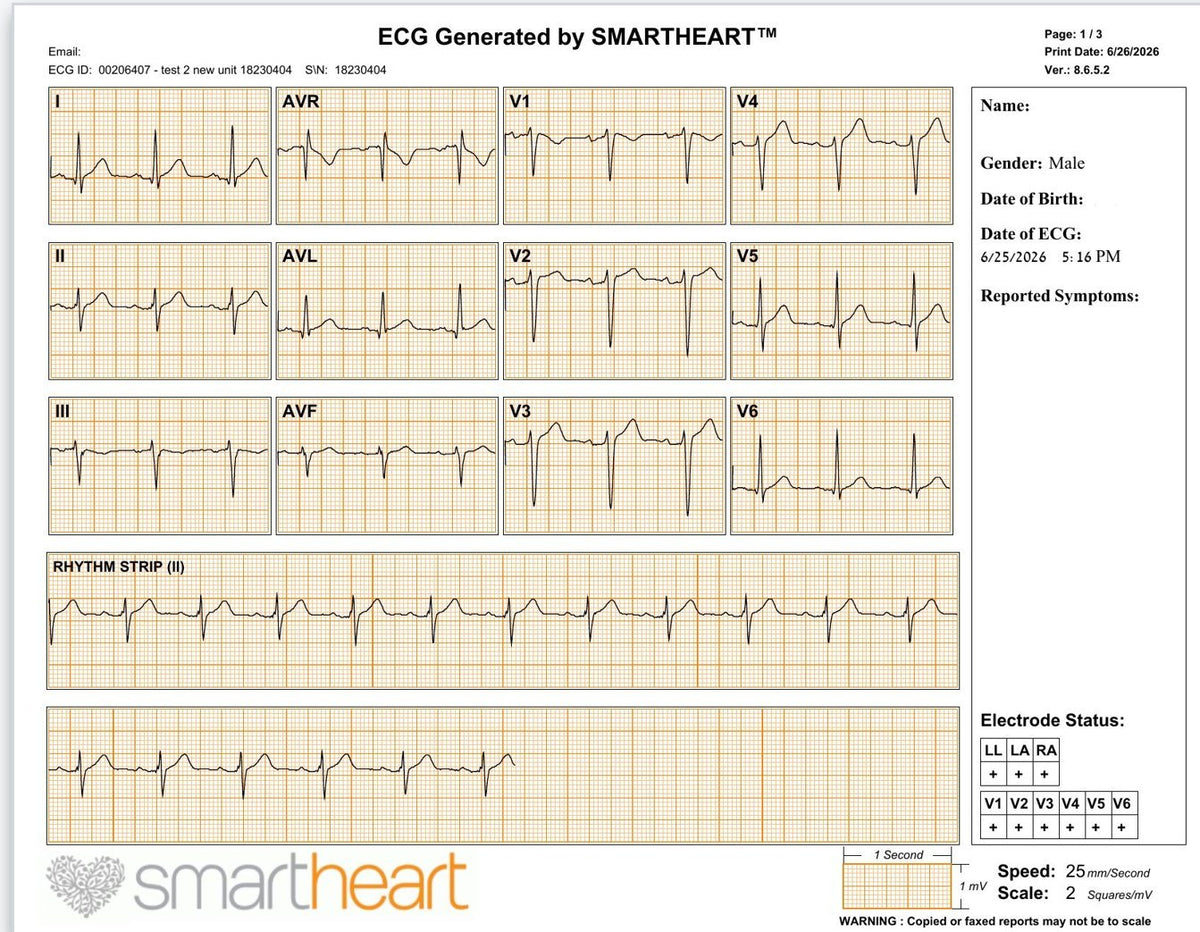

Every report carries the trace, symptoms, automated measurements, findings, and the interpreting physician's name, license number, and electronic signature.
Optional 24/7 Over-Read
Add a telehealth preliminary read or an on-demand US board-certified cardiologist over-read — $34, typically back well within 30 minutes.
Fully In-House, If You Choose
Switch off the telehealth connection entirely. Every tracing then routes only to the clinicians you name — your medical director or online medical control.
Zero PHI on Hardware
No patient data on the device, app, or phone — if a unit is lost on a call, there's nothing to breach. Encrypted end to end, HIPAA-aligned, with a written diligence response for municipal IT and legal.
Clean Handoff
One-tap report sharing to medical control, an incoming ALS crew, or the receiving ED — plus longitudinal history, overlay comparison, and a REST API into your own record system.

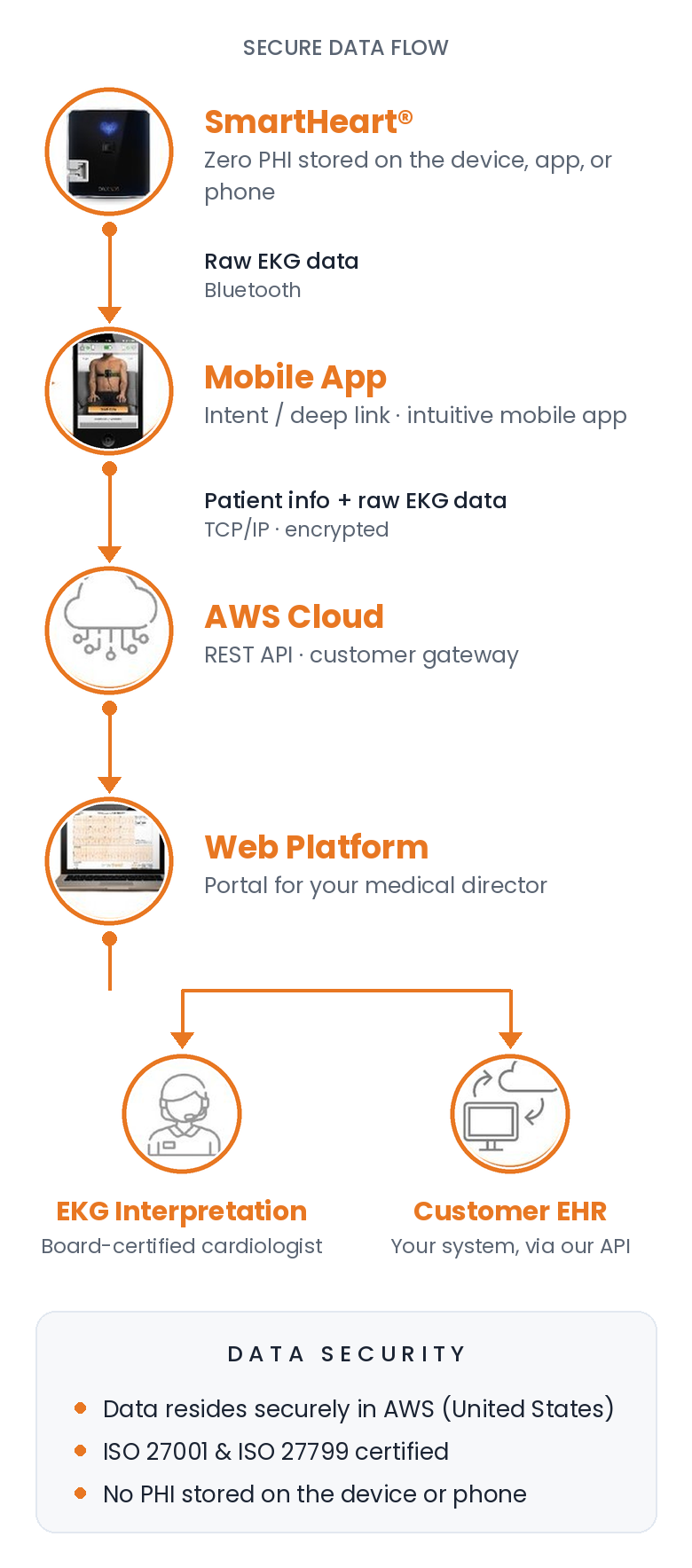

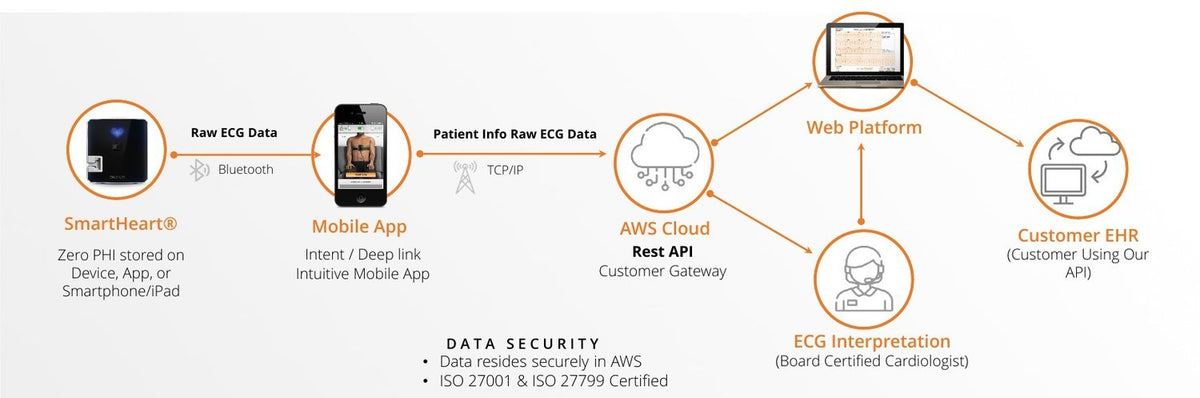

Encrypted data flow — device → app (Bluetooth) → AWS, United States → web platform, cardiologist, and your record system via REST API. No PHI is stored on the device or phone.
And for Your Own Crews
Firefighting and EMS are hard on the heart — sudden exertion, heat, and cumulative stress. Sudden cardiac events remain a leading cause of on-duty firefighter deaths. Baseline and periodic readings on personnel, each compared against that member's own history, put meaningful change in front of a clinician early.
Choose the Plan That Fits Your Agency
Whether you prefer month-to-month flexibility or are planning for the long term, SmartHeart® offers options to fit your organizational and budget goals.
SmartHeart® Device + Full Clinical Care Platform Access
Get the full benefits of SmartHeart without the investment. Month-to-month flexibility—cancel anytime.
Get StartedDevice Purchase
Own your device and pay less over time. Ideal for established agencies and long-term planning.
Buy NowBoth plans include unlimited preliminary EKG reviews. No hidden fees. No long-term contracts.
Equipping a whole fleet?
First year on the purchase plan is $1,795 per unit — against roughly $40,000 for a full ALS monitor. No activation fee, no per-capture charge, no consumables. Get volume pricing
Grant-ready
Many fire and EMS agencies fund equipment through FEMA's Assistance to Firefighters Grants and municipal budgets. Volume and grant-friendly pricing available on request. Talk to us
Monitor figure is an approximate benchmark and not a feature-for-feature comparison: SmartHeart® does not replace defibrillation, pacing, or continuous monitoring.
See It Read on Your Medical Director's Portal — in 20 Minutes
Buying for more than a few units, or working through procurement? Start with a short walkthrough and a structured pilot, with terms in writing up front.
Presentation, Over Video
A 20-minute walkthrough of the device, the workflow, and how a real tracing is read on scene and on your medical director's portal.
Structured Pilot
An agreed set of units and success metrics — capture quality, turnaround, operator confidence — with pilot terms in writing up front.
Rollout
Expansion across apparatus, stations, and mutual-aid partners, with clinical and technical support from SHL Telemedicine USA.
Prefer to talk first? Written diligence materials available on request.
Fire & EMS FAQ
Does SmartHeart replace our cardiac monitor or AED?
No. SmartHeart is a 12-lead EKG capture and transmission system. It does not provide defibrillation, pacing, continuous monitoring, or resuscitation, and it is not a substitute for EMS activation, CPR, or an AED. It puts a diagnostic 12-lead on units that don't carry a monitor, and gives ALS teams a lightweight second pathway for fast acquisition and review.
Who can operate it — do BLS crews need certification?
Any responder, ALS or BLS, can capture the tracing. No specialized EKG-acquisition certification is required, subject to your local competency requirements and protocols. The app guides placement and checks every electrode before recording, and a full training curriculum ships with every deployment.
Who reads the EKG?
Trained ALS-level personnel can read it on the device immediately. The same tracing transmits to your agency's medical director, online or county medical control, or the receiving hospital, where your own physicians read it directly. An optional 24/7 telehealth preliminary read and an on-demand US board-certified cardiologist over-read ($34) are available whenever you want them.
Can we keep all readings in-house?
Yes. The connection to the 24/7 telehealth center can be switched off entirely. Every tracing is then routed only to the clinicians you choose — your EMS medical director or online medical control.
What happens when there's no signal?
The EKG records on-device with no connection required and transmits for interpretation the moment a link returns. The file is small enough to move over cellular, Wi-Fi, and low-bandwidth links.
How does SmartHeart capture a 12-lead?

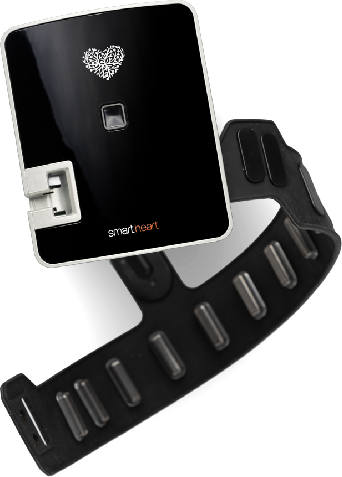

SmartHeart® combines a wearable electrode belt with three body-contact electrodes. Six electrodes integrated into the belt record the precordial leads (V1–V6). Three body-contact electrodes — under each arm and at the waist — capture the limb signals: leads I and II are recorded directly, while III, aVR, aVL and aVF are derived using standard 12-lead methodology. The complete tracing is sent via Bluetooth to the SmartHeart app for immediate review.
Is patient data secure? What will our IT and legal teams need?
No patient data is stored on the device, app, or phone. Bluetooth and app-to-cloud transport are both encrypted, and data is processed and held in AWS in the United States. The platform is ISO 27001 and ISO 27799 certified, the device is ISO 13485 certified, and data handling is HIPAA-aligned. A structured written response for municipal IT, legal, and data-handling diligence is available on request.
Are there per-capture fees or consumables?
No activation fee, no per-capture charge, and no consumables — the belt cleans with rubbing alcohol and runs about 100 EKGs on two AAA lithium batteries. Choose the $129/month plan or the $1,295 device purchase plus $500/year platform access. Cardiologist over-reads are optional at $34 each.
Can we buy multiple units or use grant funding?
Yes. Many agencies fund equipment through FEMA's Assistance to Firefighters Grants and municipal budgets. Volume and grant-friendly pricing is available on request — schedule a demo and we'll scope units, stations, and a pilot with you.
Put a 12-Lead on Every Unit Before the Next Chest-Pain Call
Capture at first contact. Your clinicians read it. Give every crew — ALS or BLS — the objective data to make the transport and destination call.
No long-term contract • No hidden fees • Cancel anytime
Important safety information: SmartHeart® is an FDA 510(k)-cleared 12-lead EKG transmitter (K113514). It captures and transmits a diagnostic-quality tracing for interpretation by a qualified clinician; the device does not itself provide a diagnosis. SmartHeart® complements — and does not replace — EMS activation, CPR, an AED/defibrillator, or continuous monitoring. For cardiac arrest: activate emergency response, begin CPR, and use an AED first.
